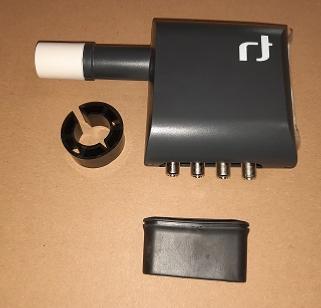

LNB QUATTRO 23mm Multiconnect

Name: LNB QUATTRO 23mm Multiconnect
Brand: INVERTO
SKU: IDLBQUTL20MULTIOPP
Price: 18.8 EUR
Availability: InStock

INVERTO

(Code: IDLBQUTL20MULTIOPP)

En Stock

LNB QUATTRO 23mm Multiconnect . Ultra fin, pour écarts très rapprochés enmulti-satellite . Utilisable notamment avec le Kit Inverto Multiconnect.

POUR MULTISWITCH UNIQUEMENT .

18,80 €

600g

Description

Low Band Input Frequency Range	10.7 ~ 11.7 GHz
Low Band Output Frequency Range	950 ~ 1950 MHz
Low Band LO Frequency	9.75 GHz
High Band Input Frequency Range	11.7 ~ 12.75 GHz
High Band Output Frequency Range	1100 ~ 2150 MHz
High Band LO Frequency	10.6 GHz
Noise Figure	0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy	+/- 1.0 MHz Max.
LO Temperature Drift	+/- 3.0 MHz Max.
Phase Noise (@ 10 kHz)	- 90 dBc / Hz Max.
Conversion Gain	60 dB Min.
Gain Ripple (Over 26 MHz Bandwidth)	+/- 0.75 dB
Gain Variation (Over Full Band)	+/- 4 dB Max.
Image Rejection	40 dB Min.
1 dB Compression Point (@ Output)	0.0 dBm Min.
Cross Polarization Isolation	22 dB Min.
Output VSWR	2.0 : 1
In-Band Spurious	- 60 dBm Max.
Current Consumption	200 mA Max. @ 11 ~ 20 V
Operating Temperature	- 30 °C ~ + 60 °C
Output Impedance	75 Ω

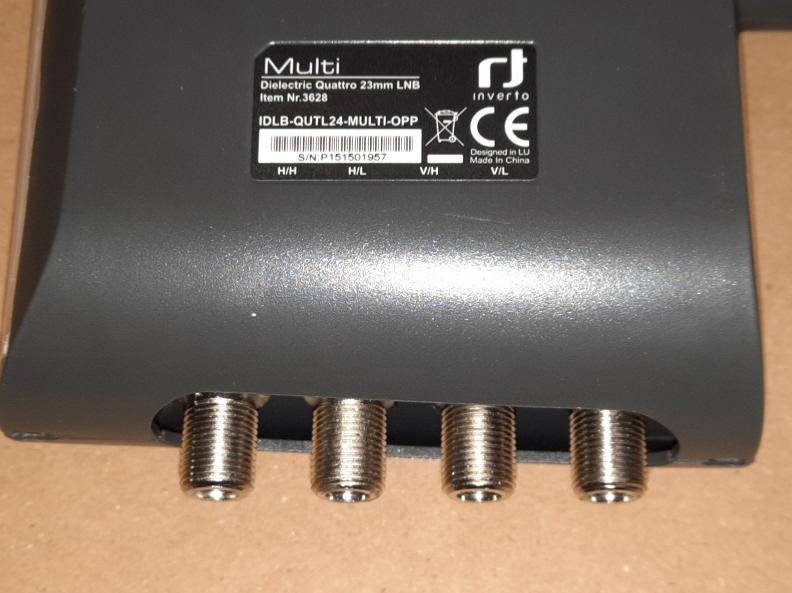

Output Connector	F-Type (Female)
Weight	344 g
