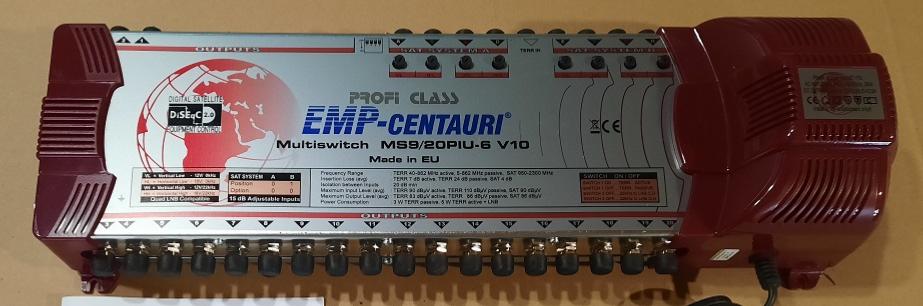

Multiswitch 9/20 PIU-6 terrestre amplifié

Multiswitch 9/20 PIU-6 terrestre amplifié

EMP CENTAURI
(Code: MS920PIU6)
En Stock
Multiswitch EMP Centauri de la série Profiline , garanti 4 ans .
Un 9/20 largement paramétrable : Terrestre actif ou passif ; compatible LNB Quattro ou Quad ... Livré avec visserie et fiches F .
160,00 €
1900g
-+
Ajouter au Panier

Information complémentaire
Description
  • Multiswitch MS9/20PIU-5 is suitable for distribution of 8 SAT IF signals including terrestrial for up to 10 users.


    Specifications of MS9/20PIU-6
    Frequency Range LNB-Inputs 950-2300 MHz
    Terr. Input 5-862 MHz (passive)

    40-862 MHz (active)
    Outputs 5-2300 MHz (passive)

    40-2300 MHz (active)
    Control
    		DiSEqC Commands or
    (10-14.5 / 15.5-20 V
    + 0/22 kHz
    + Tone Burst)
    Insertion Loss 950-2300 MHz 0 dB avg
    5-862 MHz (passive) 24 dB avg
    40-862 MHz (active) 2 dB avg gain
    SAT Inputs Isolation Between V/H Polarisations 20 dB min
    Between Low and High Bands 20 dB min
    Between Sat Systems A and B 25 dB min
    Maximum Input Level* Sat. 85 dBµV avg
    Terr. 110 dBµV avg (passive)

    85 dBµV avg (active)
    Maximum Output Level* Sat. 85 dBµV avg
    Terr. 86 dBµV avg (passive)
    87 dBµV avg (active)
    Power Consumption From each receiver 50 mA (18 V)
    From an internal power supply 3 W (TERR passive)
    6 W (TERR active) + LNB
    Dimensions (w,d,h [cm])
    		34.7 x 15.2 x 8.7 cm (power cord length 130 cm)
    Temperature range
    		-30 °C - +70 °C

    *Terr.: EN 50083-3/60dB IMA^(3) [dBµV]; SAT: EN 50083-3/35dB IMA^(3) [dBµV]
    •
